Conical Force Feeder

The conical force feeder machine is an efficient and energy-saving automated feeding equipment, suitable for the production of special materials such as high filling materials, fiber grade color masterbatch, functional masterbatch, cable materials, etc.

Send Inquiry

Product Introduction

Product Parameters

The conical force feeder machine is an efficient and energy-saving automatic feeding equipment, suitable for the production of special materials such as high-filling materials, fiber-grade masterbatches, functional masterbatches, cable materials, etc. Its main technical parameters are as follows:

Motor power: 11kW, controlled by frequency converter to ensure the stability and efficiency of the feeding process.
The screw is made of high-quality alloy steel (such as 38CrMoAlA), nitrided, wear-resistant and corrosion-resistant, with a long service life.

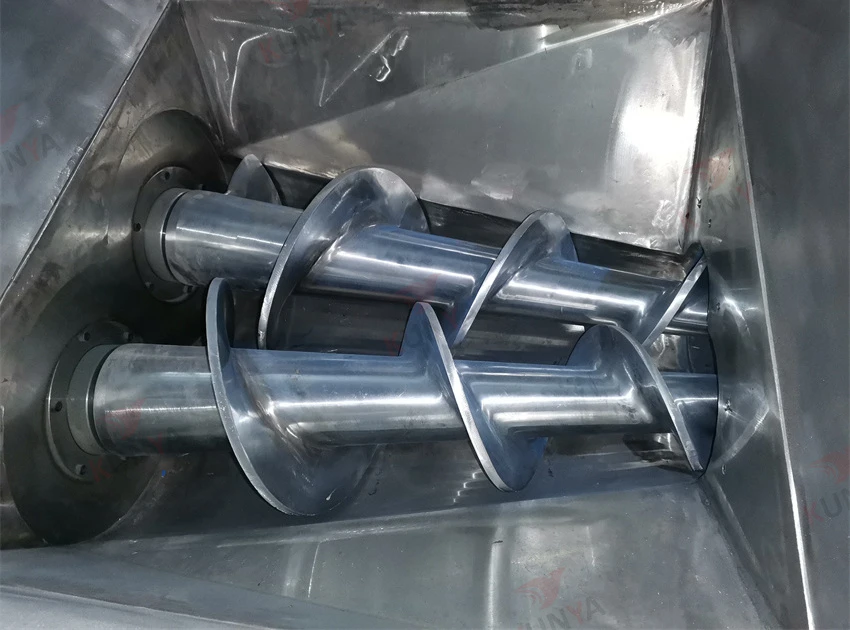

Screw design: Conical twin screw forced feeding to ensure uniform mixing and efficient transportation of materials.
Feeding body material: The inner surface of the feeding body and the feeding hopper are polished and hard chrome-plated, wear-resistant and corrosion-resistant, with high finish.
Temperature control system: It can be selected according to actual needs to ensure stable operation of the equipment.

Product Features

01/

Efficient And Continuous Feeding: The conical force feeder adopts the principle of non-meshing cross-meshing. The main shaft sprocket drives the thrust shaft and the feed body to rotate in the opposite direction, achieving continuous and uniform feeding, and improving production efficiency by more than 30%.

02/

Durable: The key components are made of high-manganese alloy steel with a hardness of 210HB, and the service life is more than 3 times that of ordinary carbon steel.

03/

Wide Material Compatibility: The conical force feeder is suitable for difficult fillers such as high-filling, low-smoke halogen-free cable materials, masterbatches, and sticky plastics.

04/

Easy To Disassemble And Maintain: The feed body and hopper adopt a quick-disassembly design with a compact structure, which shortens the maintenance and cleaning time by 40%.

FAQ

Q1: What materials are suitable for conical force feeder?

A1: It is suitable for special materials such as high-filling materials, fiber-grade masterbatches, functional masterbatches, cable materials, etc., especially for difficult-to-fill occasions such as high-filling, low-smoke halogen-free cable materials.

Q2: Is the equipment maintenance cost high?

A2: The equipment is reasonably designed, the feeding body and feeding hopper are easy to disassemble and clean, and maintenance is convenient, which reduces the maintenance cost during long-term use.

Q3: How to adjust the feeding speed?

A3: The equipment is equipped with a variable frequency speed regulation system, which can adjust the feeding speed according to production needs to ensure uniform and stable feeding.

Q4: How long is the service life of the equipment?

A4: The equipment is made of high-quality alloy steel and has been nitrided, which is wear-resistant, corrosion-resistant and has a long service life.
