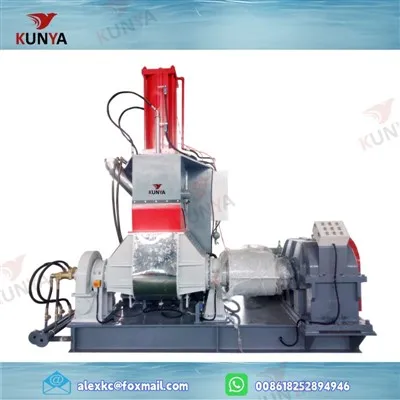

Rubber Kneader

- High technology automated pneumatic control
- Excellent compounding and dispersion effect
- High output and stable working
- Double blades with special helix angles, appropriate clearances, and high cooling effects exhibit excellent dispersion.

Send Inquiry

Product Introduction

Parameter

Model	KYM-75	KYM-110
Volume	75L	110L
Capacity	60-85kg/unit	100-140kg/unit
Mixing Time	5-7unit/hr	5-7unit/hr
Compress Air	0.6-0.8Mpa (6-8kg/cm²)	0.6-0.8Mpa (6-8kg/cm²)
Main Motor	AC110kw	AC160kw
Tipping Motor	AC3.75kw	AC5.5kw
Air Cylinder	φ350mm	φ420mm
Tipping Angle	125°	125°
Rotors Speed	42/33rpm	42/33rpm
Machine Weight	9200kg	1400kg
Feeding Port	Front or back	Front or back
Temp. Control Accuracy	±5℃	±5℃
Machine Dimension (mm)	3770x2140x3180	4400x2750x3770

Features

This rubber kneader machine is mostly suitable for kneading application of all kind Rubber, Plastic and Chemical material. The machine features as follow:

- Automated pneumatic control

- Excellent compounding and dispersion effect

- High output and stable working

- Double blades with special helix angles, high cooling effect

FAQ

- Is it possible to visit factory?

Yes. Welcome to visit our factory at any time.

- How to order?

1. Contact us to get more information about machines.
2. Our salesman prepare quotation with details.
3. Clients confirm machine details and request sales contract with stamp & signature.
4. Clients arrange first payment according to contract. Then we start machine manufacturing.
5. We inform clients when machine is ready, and prepare for machine testing.
6. We arrange machines loading and delivery after receiving balance payment.

- What's the warranty?

Usually we provide 12 months warranty for our machines.

- Do you provide after-sales service?

Yes, sure. We provide online support. If clients need, we can also send technicians overseas for installation and commissioning.
