LSHF Cable Compound Pelletizing Line
Host configuration: Twin screw and single screw combination, with a production capacity of 500-800 kilograms per hour.

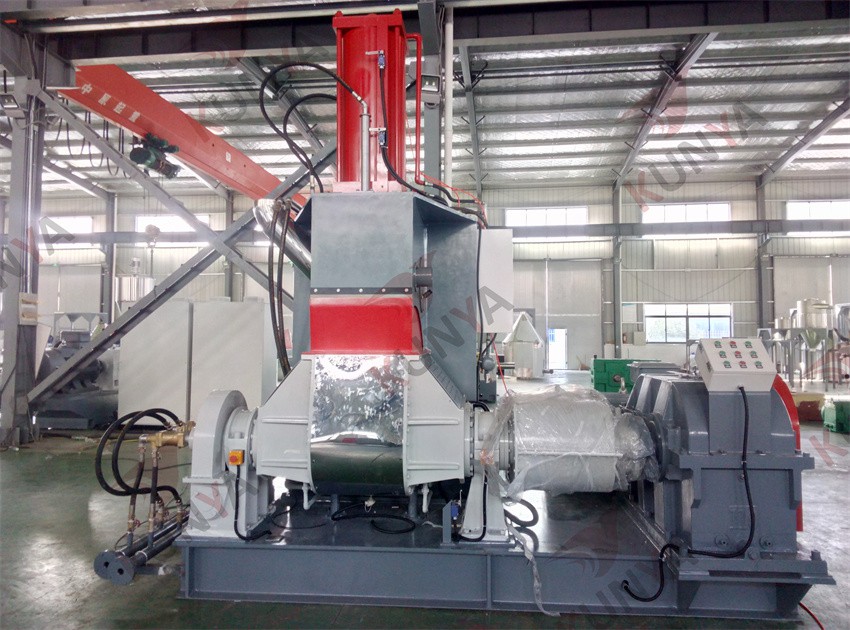

Mixing system: Using a 75L/110L mixing machine, combined with a cone double feeder and a double/single screw extruder unit, to achieve material forced feeding and efficient plasticization.
- Product Introduction
Product Parameters
Main unit configuration: The equipment adopts a combination of twin screw and single screw, with a capacity of 500-800 kg per hour.
Mixing system: The system adopts a 75L/110L mixing main unit, with a conical double feeder and a twin/single screw extruder unit, which can realize forced feeding and efficient plasticization of materials.
Pellet cutting technology: This technology is equipped with an air-cooled die face hot cutting head and supports automatic screen change of hydraulic plates, which can reduce downtime and improve production efficiency.
Cooling screening: This link is equipped with a double-stage cyclone separator, an extended air-cooled vibrating screen and a silo to ensure uniform and clean particles.
Applicable materials: The equipment is suitable for PVC, LSHF CPE cable materials, EVA shielding materials, PP + carbon black low-smoke halogen-free series, functional masterbatch, etc.
Product Features
Efficient Continuous Production
The production line adopts the "twin-screw high-speed strong mixing + single-screw low-temperature weak shearing" process to ensure that the heat-sensitive materials are evenly dispersed and not overheated. The average daily output of a single production line reaches 8-10 tons.
Durable
The barrel screw is made of 38CrMoAlA nitrided steel, with a surface hardness of more than HV950, wear-resistant and corrosion-resistant, and a continuous operating life of more than 3 years.
Full Process Automation
From mixing, extrusion, granulation, cooling to screening, all are automatically controlled, and the production process does not require frequent manual intervention.
High-precision Pelletizing Process
LSHF Cable compound pelletizing line uses high-precision die heads and customized pelletizing tools. The particle size error is controlled within ±0.2mm to ensure uniform particle size.
FAQ
